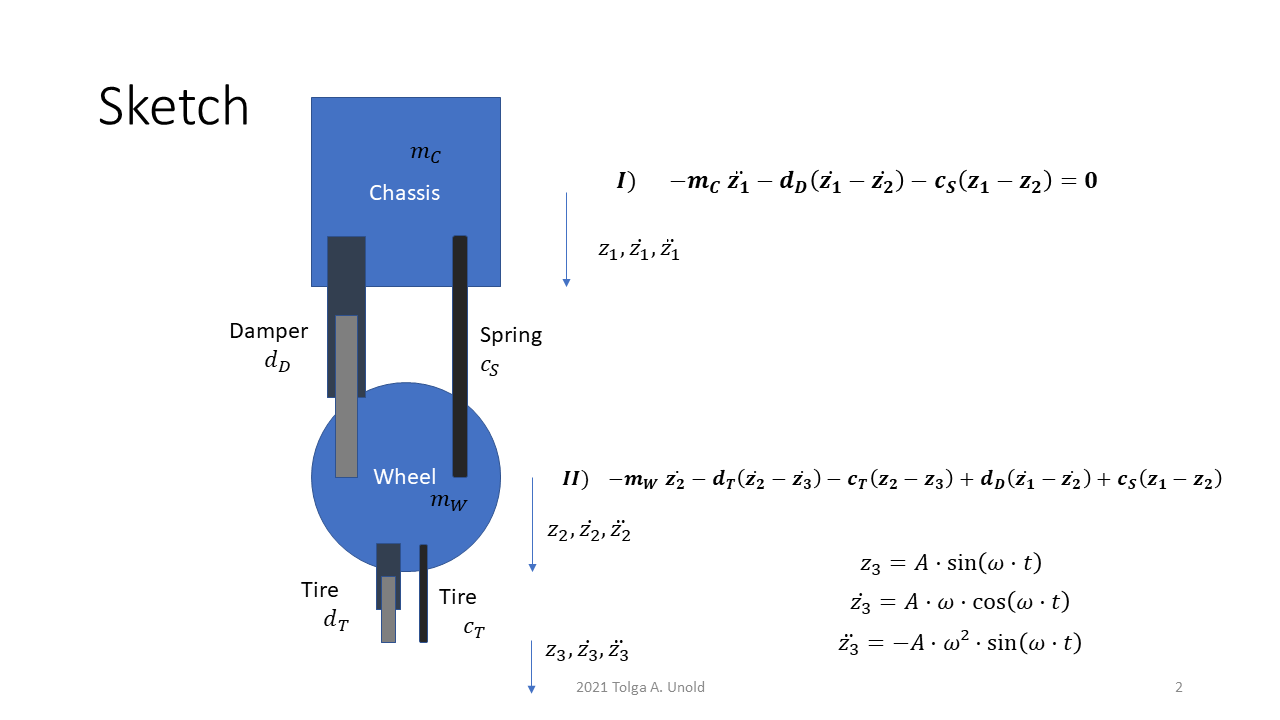

Quarter Vehicle

engineering software

Version 1.0

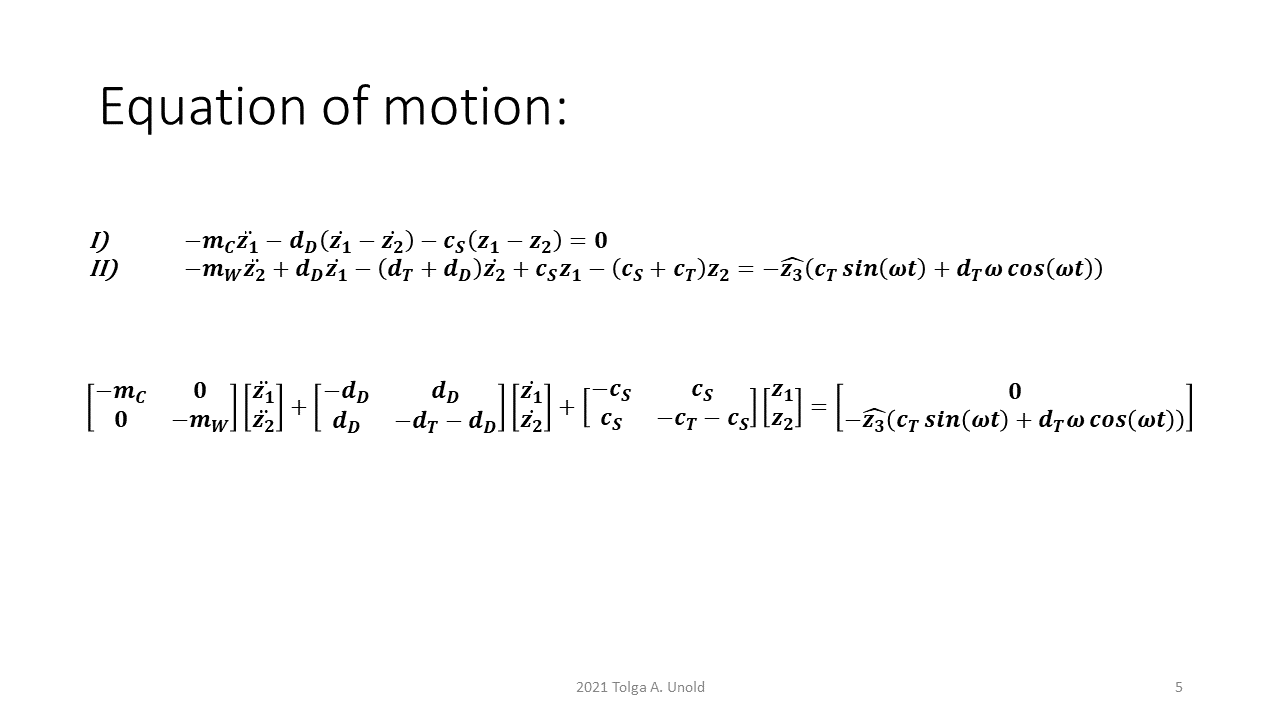

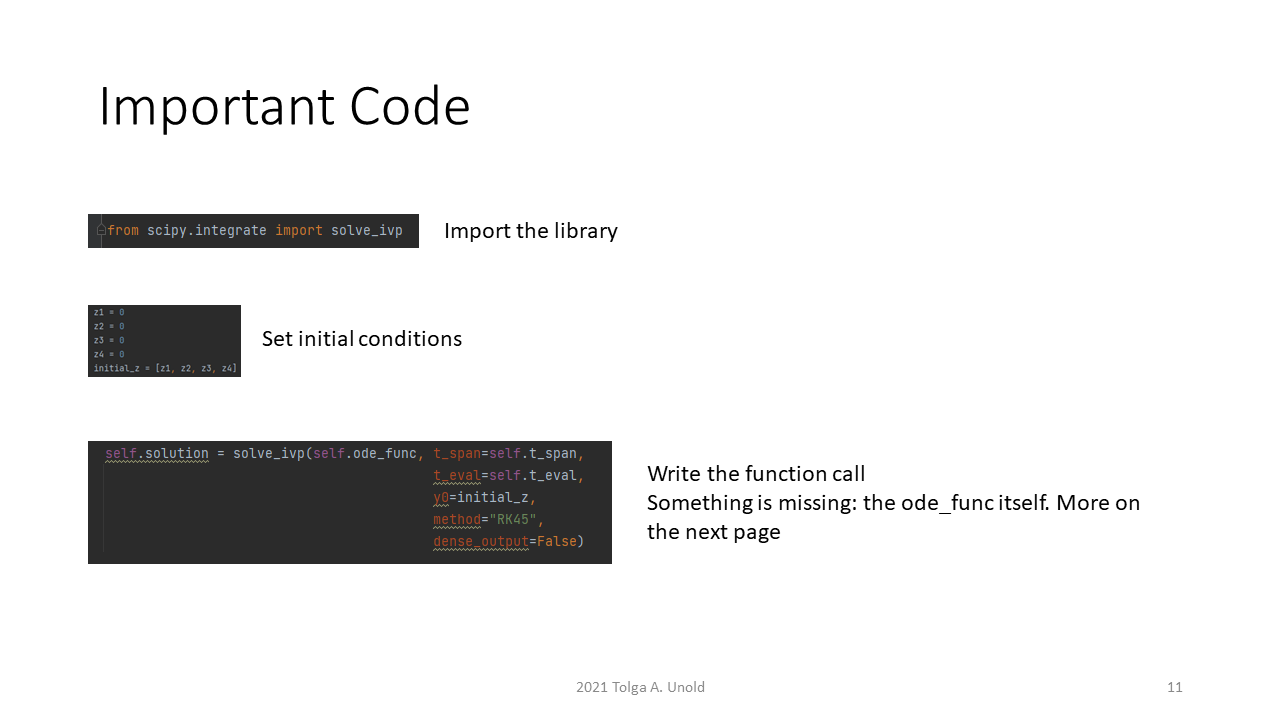

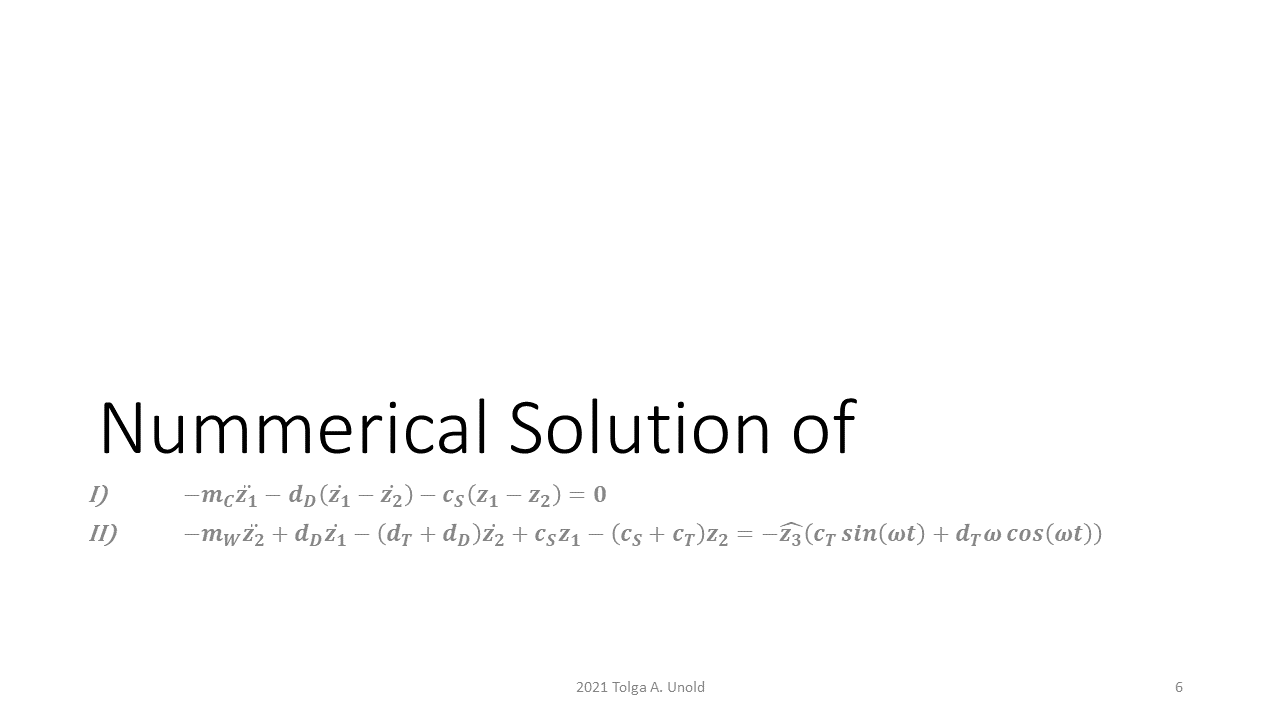

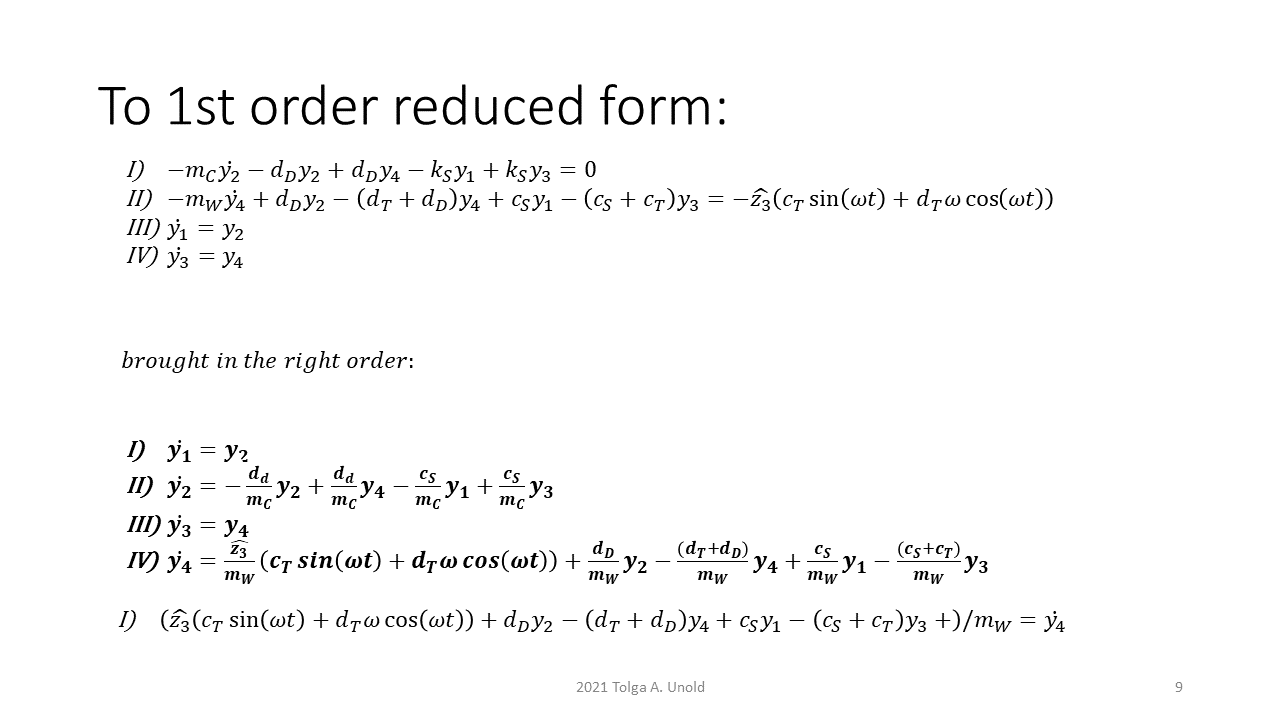

Implementation of differential equation using scipy.integrate.solve_ivp

Please excuse the bad framerate at the end of the video. And yes, the rim diameter is not a SI unit.

Tutorial

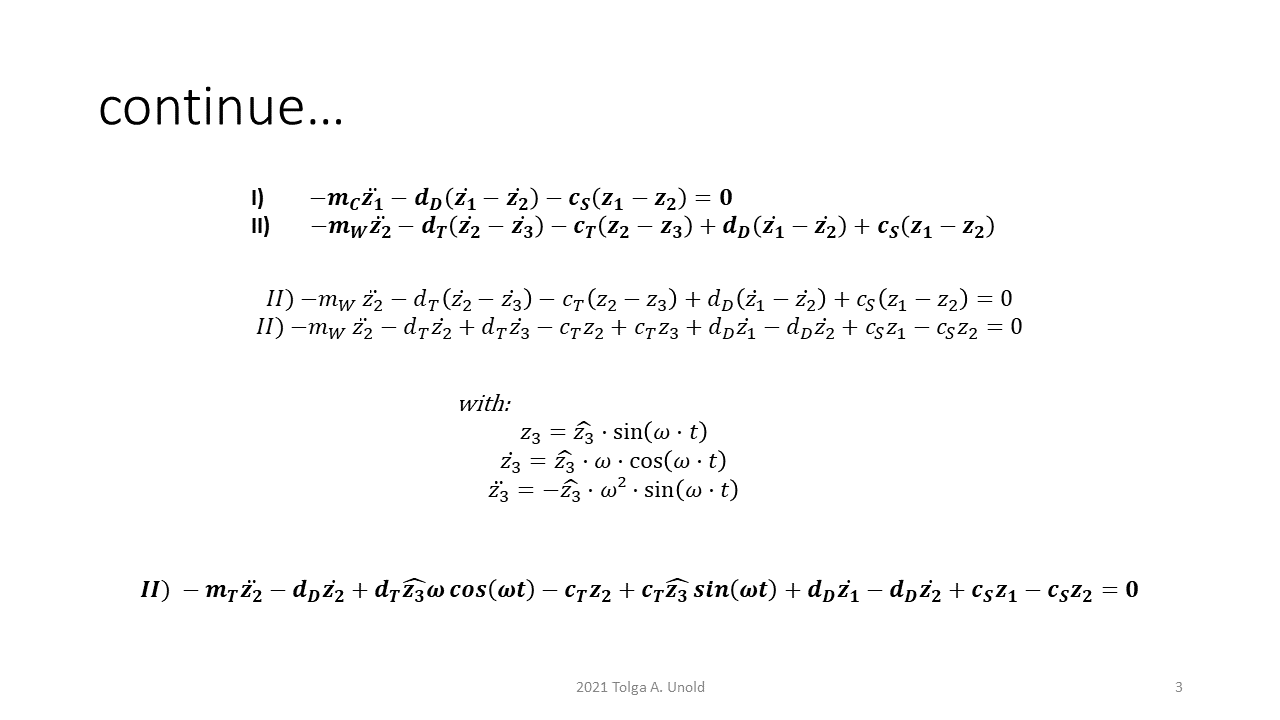

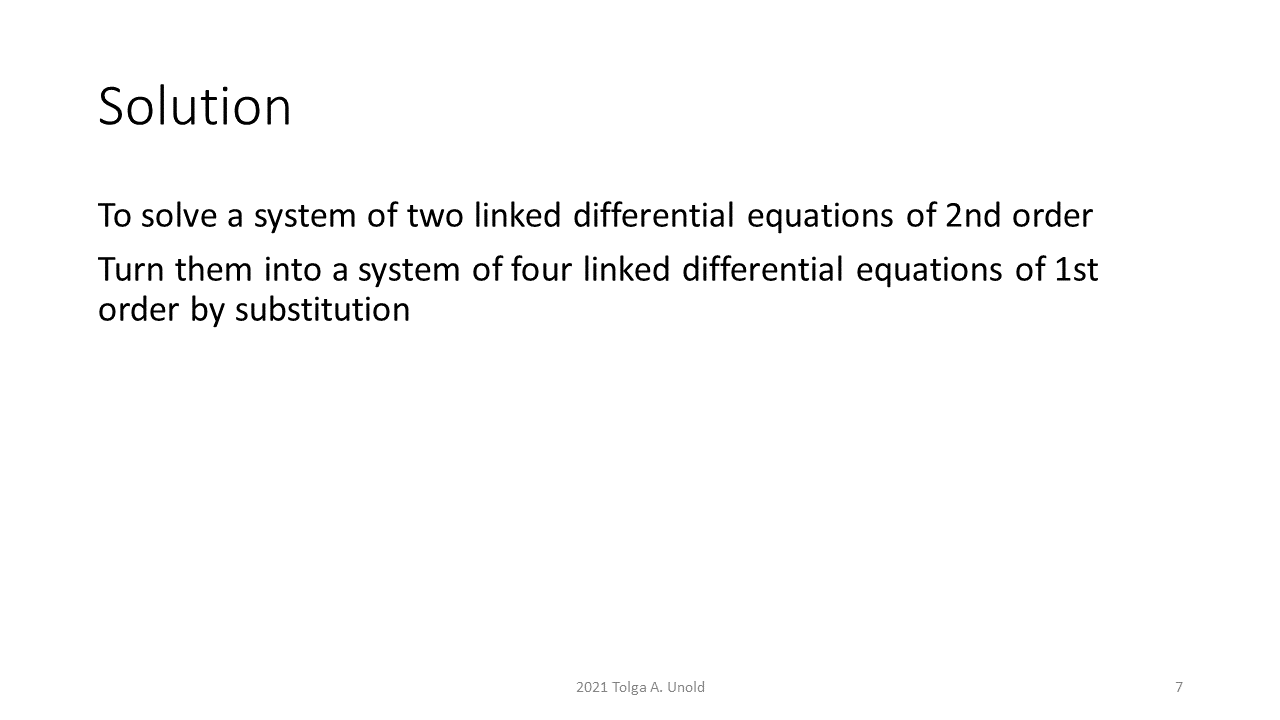

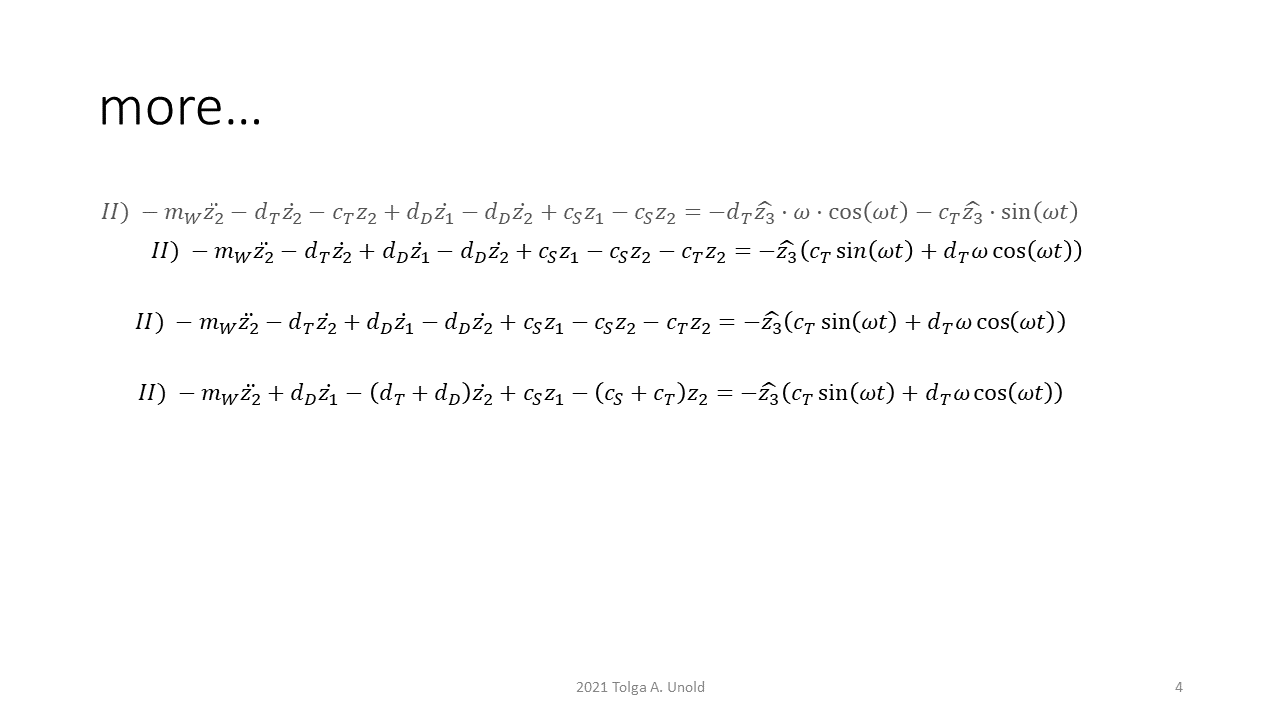

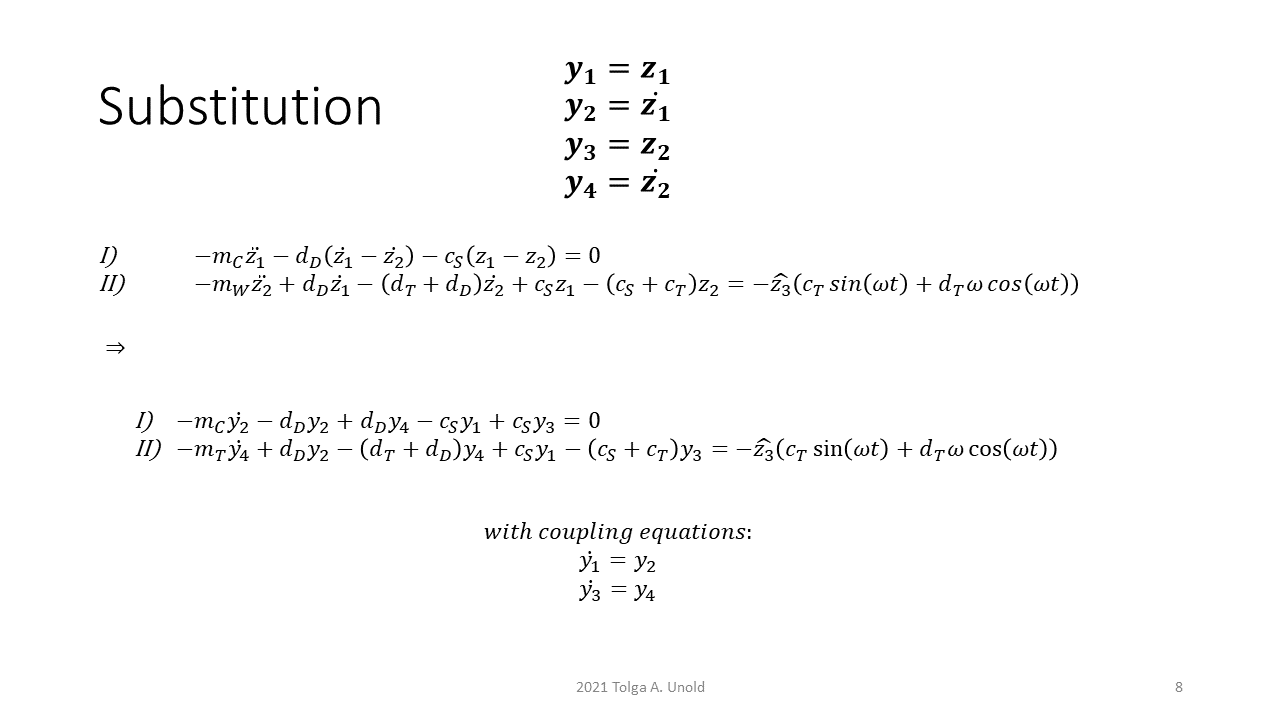

Implementation of differential equation using scipy.integrate.solve_ivp

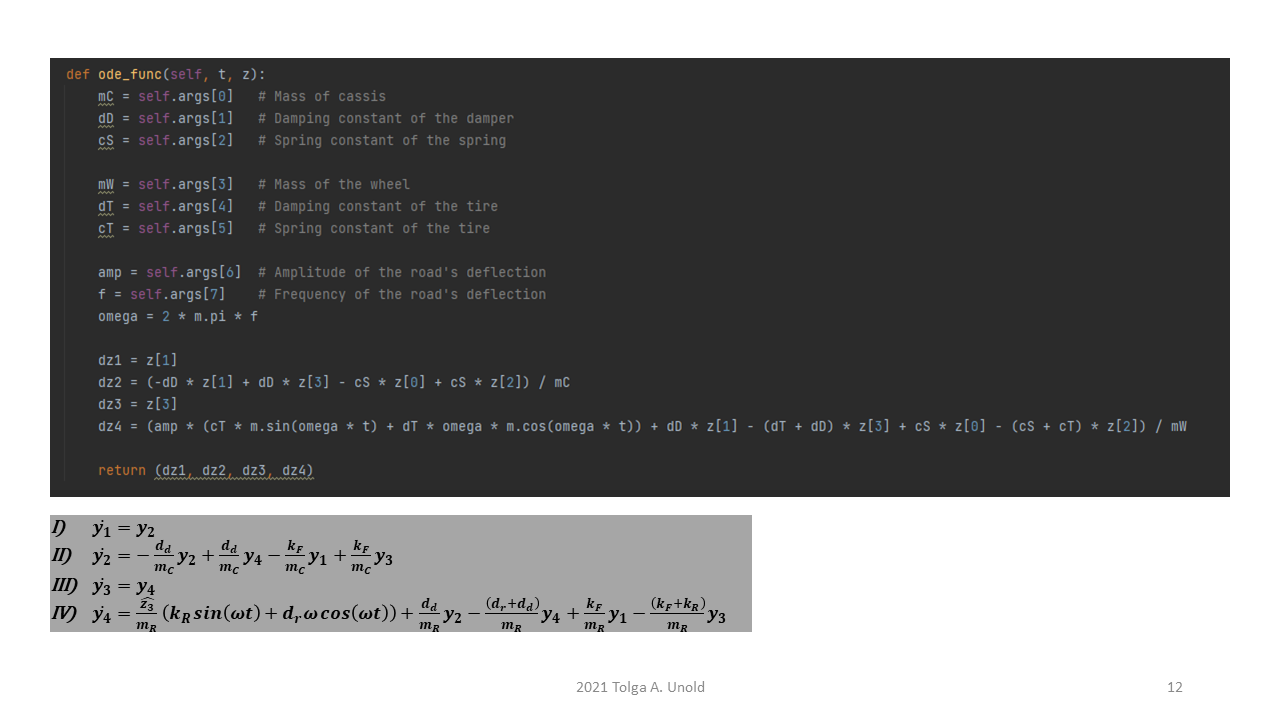

picture of main program

picture of main program

picture of main program

picture of main program

picture of main program

picture of main program

picture of main program

picture of main program

picture of main program

picture of main program

picture of main program

picture of main program
